7. Migration & new possibilities — driven by a real detector

This notebook does two things at once:

Migrates a real 1.x tracker to 2.0. We take the appearance-embedding tracker from the migration guide and rebuild it in the 2.0 syntax, then run it on detections from an actual pretrained model.
Showcases what 2.0 makes possible that 1.x could not express: parallel cost fusion, cascaded matching, lifecycle policies, and end-to-end differentiable matching.

Everything runs locally on CPU. The detections come from a tiny Hugging Face detector (hustvl/yolos-tiny, ~6M params) plus a torchvision ResNet-18 appearance encoder — both download their weights on first run. If the model or network is unavailable, the notebook falls back to a deterministic synthetic seed so it still runs end to end.

Setup

Install the extra dependencies once (the core library needs only unitrack; this notebook adds a detector and plotting):

# One-time install. Comment out after the first run.
%pip install -q "transformers>=4.40" torchvision matplotlib pillow

Output

/home/khwstolle/Projects/research/unitrack/.venv/bin/python3: No module named pip

Output

Note: you may need to restart the kernel to use updated packages.

import urllib.request

import matplotlib.patches as mpatches
import matplotlib.pyplot as plt
import torch

import unitrack as ut
from unitrack.assignment import Associate, Jonker, SoftAssignment
from unitrack.costs import BoxIoU, Cosine
from unitrack.data import (
    Detections, FrameContext, TensorSpec, Tracklets,
)
from unitrack.gates import ClassGate, ScoreGate
from unitrack.lifecycle import (
    ConfirmedOnly, IncludeAll, NoLifecycle, StandardLifecycle,
    TrackletStatus,
)
from unitrack.pipeline import Gated, Parallel, Pipe, Sequential
from unitrack.pipeline.merge import WeightedSum
from unitrack.states import (
    FromDetectionField, Identity, Replace, State,
)

torch.manual_seed(0)
plt.rcParams["figure.figsize"] = (7, 4)

A real, lightweight detector + appearance encoder

unitrack tracks; it does not detect. In a real pipeline the per-frame detections come from an object detector, and the appearance embeddings from a ReID encoder. We use:

Detector — hustvl/yolos-tiny via 🤗 Transformers. Returns boxes (xyxy, pixels), class labels, and scores.
Appearance — torchvision ResNet-18 with its classification head removed, giving a 512-d feature per cropped box. We L2-normalise it so a cosine cost is well-behaved.

These are exactly the four fields the migrated tracker consumes: bbox, category, score, and reid.

def load_detector_and_encoder():
    """Load a tiny HF detector + a torchvision ReID encoder."""
    import torchvision
    from transformers import (
        AutoImageProcessor, AutoModelForObjectDetection,
    )

    processor = AutoImageProcessor.from_pretrained("hustvl/yolos-tiny")
    detector = AutoModelForObjectDetection.from_pretrained(
        "hustvl/yolos-tiny"
    ).eval()

    weights = torchvision.models.ResNet18_Weights.DEFAULT
    encoder = torchvision.models.resnet18(weights=weights)
    encoder.fc = torch.nn.Identity()  # expose the 512-d features
    encoder.eval()
    return processor, detector, encoder, weights.transforms()


@torch.no_grad()
def detect_and_embed(image, bundle, *, score_thr=0.7):
    """Detect objects and attach a 512-d appearance embedding each."""
    processor, detector, encoder, crop_tf = bundle
    inputs = processor(images=image, return_tensors="pt")
    outputs = detector(**inputs)
    target_sizes = torch.tensor([[image.height, image.width]])
    out = processor.post_process_object_detection(
        outputs, threshold=score_thr, target_sizes=target_sizes
    )[0]
    boxes, labels, scores = out["boxes"], out["labels"], out["scores"]

    crops = []
    for x0, y0, x1, y1 in boxes.tolist():
        x1, y1 = max(x1, x0 + 1), max(y1, y0 + 1)  # guard degenerate boxes
        crops.append(crop_tf(image.crop((x0, y0, x1, y1))))
    reid = (
        torch.nn.functional.normalize(encoder(torch.stack(crops)), dim=-1)
        if crops else torch.zeros(0, 512)
    )
    names = [detector.config.id2label[int(c)] for c in labels]
    return {
        "boxes": boxes.float(), "category": labels.long(),
        "score": scores.float(), "reid": reid.float(), "names": names,
    }

Run the detector on one image. We use a stock multi-object photo; point IMAGE_URL (or a local IMAGE_PATH) at your own to try it on something else. If anything fails — no network, deps missing — we drop to a deterministic synthetic seed and keep going.

IMAGE_URL = "http://images.cocodataset.org/val2017/000000039769.jpg"


def synthetic_seed(reid_dim=512):
    """Offline stand-in: three objects, two sharing a class."""
    g = torch.Generator().manual_seed(0)
    q, _ = torch.linalg.qr(torch.randn(reid_dim, reid_dim, generator=g))
    return {
        "boxes": torch.tensor([[10., 10, 40, 60],
                               [120, 20, 150, 70],
                               [220, 15, 250, 65]]),
        "category": torch.tensor([1, 1, 2]),
        "score": torch.tensor([0.95, 0.9, 0.8]),
        "reid": q[:3],
        "names": ["cat", "cat", "remote"],
    }


image = None
try:
    from PIL import Image
    bundle = load_detector_and_encoder()
    image = Image.open(urllib.request.urlopen(IMAGE_URL)).convert("RGB")
    seed = detect_and_embed(image, bundle)
    if seed["boxes"].shape[0] == 0:
        raise RuntimeError("detector found no objects above threshold")
    SOURCE = f"hugging face yolos-tiny ({len(seed['names'])} detections)"
except Exception as exc:  # noqa: BLE001 — any failure -> deterministic seed
    print(f"[fallback] real model unavailable "
          f"({type(exc).__name__}: {exc}); using a synthetic seed.")
    seed = synthetic_seed()
    SOURCE = "synthetic fallback"

REID_DIM = seed["reid"].shape[1]
print(f"source:  {SOURCE}")
print(f"objects: {seed['names']}")
print(f"scores:  {seed['score'].round(decimals=2).tolist()}")

Output

[fallback] real model unavailable (ModuleNotFoundError: No module named 'transformers'); using a synthetic seed.
source:  synthetic fallback
objects: ['cat', 'cat', 'remote']
scores:  [0.949999988079071, 0.8999999761581421, 0.800000011920929]

# Show the detections on the image (or list them in the fallback case).
if image is not None:
    fig, ax = plt.subplots(figsize=(7, 5))
    ax.imshow(image)
    for (x0, y0, x1, y1), name, sc in zip(
        seed["boxes"].tolist(), seed["names"], seed["score"].tolist()
    ):
        ax.add_patch(mpatches.Rectangle(
            (x0, y0), x1 - x0, y1 - y0,
            fill=False, edgecolor="lime", linewidth=2))
        ax.text(x0, y0 - 4, f"{name} {sc:.2f}", color="lime",
                fontsize=9,
                bbox=dict(facecolor="black", alpha=0.5, pad=1))
    ax.set_axis_off()
    ax.set_title(f"Detections from {SOURCE}")
    plt.show()
else:
    for name, box in zip(seed["names"], seed["boxes"].tolist()):
        print(f"  {name:8s} bbox={[round(v, 1) for v in box]}")

Output

  cat      bbox=[10.0, 10.0, 40.0, 60.0]
  cat      bbox=[120.0, 20.0, 150.0, 70.0]
  remote   bbox=[220.0, 15.0, 250.0, 65.0]

From one image to a clip

Tracking needs a sequence. We synthesize one from the single set of real detections: each frame pans the camera by a fixed vector, shuffles the detection order (so the tracker can't cheat on row alignment), and jitters the appearance embeddings slightly. The motion is deterministic, so every tracker below sees the identical clip — differences in their output come from the tracker, not the data.

def make_clip(seed, *, n_frames=8, pan=(15.0, 4.0), drop=()):
    M = seed["boxes"].shape[0]
    pan_v = torch.tensor([pan[0], pan[1], pan[0], pan[1]])
    g = torch.Generator().manual_seed(1)
    clip = []
    for k in range(n_frames):
        if k in drop:  # a missed-detection / occlusion frame
            clip.append(Detections(
                index=torch.zeros(0, dtype=torch.int64),
                reid=torch.zeros(0, REID_DIM), bbox=torch.zeros(0, 4),
                centroid=torch.zeros(0, 2),
                category=torch.zeros(0, dtype=torch.int64),
                score=torch.zeros(0), batch_size=[0]))
            continue
        boxes = seed["boxes"] + k * pan_v
        centroid = torch.stack(
            [(boxes[:, 0] + boxes[:, 2]) / 2,
             (boxes[:, 1] + boxes[:, 3]) / 2], dim=-1)
        reid = seed["reid"] + 0.01 * torch.randn(
            M, REID_DIM, generator=g)
        reid = torch.nn.functional.normalize(reid, dim=-1)
        order = torch.randperm(M, generator=g)
        clip.append(Detections(
            index=torch.arange(M, dtype=torch.int64),
            reid=reid[order], bbox=boxes[order], centroid=centroid[order],
            category=seed["category"][order], score=seed["score"][order],
            batch_size=[M]))
    return clip

clip = make_clip(seed)
print(f"clip: {len(clip)} frames x {seed['boxes'].shape[0]} detections")

Output

clip: 8 frames x 3 detections

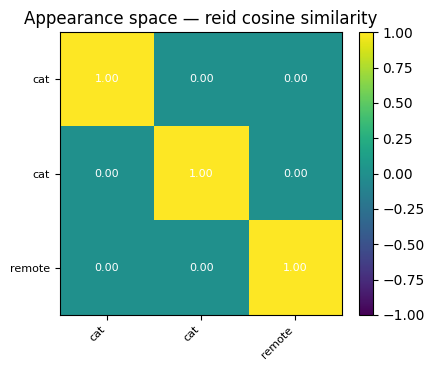

Are the objects separable by appearance?

The migrated tracker matches on the reid embedding, so before running it, it's worth asking whether the embeddings actually tell the objects apart. The cosine similarity below is 1 on the diagonal; small off-diagonal values mean the cue is informative. Two objects of the same class (e.g. two cats) will show a higher off-diagonal value — exactly the case where motion has to help.

sim = seed["reid"] @ seed["reid"].T   # reid rows are L2-normalized
fig, ax = plt.subplots(figsize=(4.4, 3.8))
im = ax.imshow(sim.numpy(), cmap="viridis", vmin=-1, vmax=1)
ax.set_title("Appearance space — reid cosine similarity")
n = len(seed["names"])
ax.set_xticks(range(n)); ax.set_yticks(range(n))
ax.set_xticklabels(seed["names"], rotation=45, ha="right", fontsize=8)
ax.set_yticklabels(seed["names"], fontsize=8)
for i in range(n):
    for j in range(n):
        ax.text(j, i, f"{sim[i, j]:.2f}", ha="center", va="center",
                color="white", fontsize=8)
fig.colorbar(im, ax=ax, fraction=0.046)
plt.tight_layout()
plt.show()

The 1.x tracker we're migrating

In unitrack 1.x the appearance tracker was built like this (see the migration guide for the full before / after and the symbol-by-symbol mapping):

# --- unitrack 1.x ---
cost = ut.costs.Cosine(field="reid")
cost = ut.costs.GateCost("category").wrap(cost)        # gate fused into cost
tracker = ut.SimpleTracker(
    tracker=ut.MultiStageTracker(
        fields=[_build_field("reid"), _build_field("score"), ...],
        stages=[ut.stages.Gate(gate=SelectAndFilter("score", min_score),
                then=[ut.stages.Association(
                    cost=cost,
                    assignment=ut.assignment.Jonker(threshold=0.9))])],
    ),
    memory=ut.TrackletMemory(states={
        "reid": ut.states.Value(torch.float, shape=(512,)), ...}),
)

Field-selection modules at the front, gating fused into the cost, states living on the memory, and a SimpleTracker bundling tracker + memory.

Step 1 — the same tracker, in 2.0

The 2.0 version reads as a small tree. Gates are first-class (ClassGate, ScoreGate) and combine with Sequential; Gated applies them to a Pipe that turns a Cosine cost into a match. States move onto the Tracker as (Process, Observation, Initializer) triples — a plain appearance cache is Identity + Replace + FromDetectionField.

def feature_state(name, shape, dtype):
    """A pure cache: no motion model, replace on match, seed from det."""
    return State(
        schema=TensorSpec(shape=shape, dtype=dtype),
        process=Identity(name), observation=Replace(name),
        init=FromDetectionField(name))

STATES = {
    "reid": feature_state("reid", (REID_DIM,), torch.float32),
    "bbox": feature_state("bbox", (4,), torch.float32),
    "centroid": feature_state("centroid", (2,), torch.float32),
    "category": feature_state("category", (), torch.int64),
    "score": feature_state("score", (), torch.float32),
}

def make_tracker(root, *, lifecycle=None, visibility=None):
    return ut.Tracker(
        root=root, states=dict(STATES),
        lifecycle=lifecycle or NoLifecycle(),
        visibility=visibility or IncludeAll())

def run_clip(tracker, clip):
    ms = ut.MultiStream(tracker)
    return [ms.step(0, d, FrameContext.make(k, fps=15.0, stream_key=0))
            for k, d in enumerate(clip)]

def distinct_ids(results):
    ids = set()
    for r in results:
        ids.update(r.snapshot.id.tolist())
    return sorted(ids)

appearance_tracker = make_tracker(
    Gated(
        gate=Sequential([
            ClassGate("category"),          # cat can't match remote
            ScoreGate("score", threshold=0.1),
        ]),
        then=Pipe(cost=Cosine("reid"),
                  assoc=Associate(Jonker(threshold=0.3))),
    )
)
app_results = run_clip(appearance_tracker, clip)
print(f"appearance tracker -> stable ids: {distinct_ids(app_results)}")

Output

appearance tracker -> stable ids: [1, 2, 3]

def plot_tracks(results, title, ax):
    cmap = plt.get_cmap("tab10")
    n_frames = max(1, len(results) - 1)
    for k, r in enumerate(results):
        snap = r.snapshot
        for n in range(snap.batch_size[0]):
            c = snap.centroid[n]
            ax.scatter(c[0].item(), c[1].item(),
                       color=cmap(int(snap.id[n]) % 10), s=45,
                       edgecolor="black", linewidth=0.4,
                       alpha=0.35 + 0.65 * k / n_frames)
    ax.set_title(title)
    ax.set_xlabel("x"); ax.set_ylabel("y"); ax.grid(alpha=0.3)
    ax.invert_yaxis()  # image coordinates: y grows downward

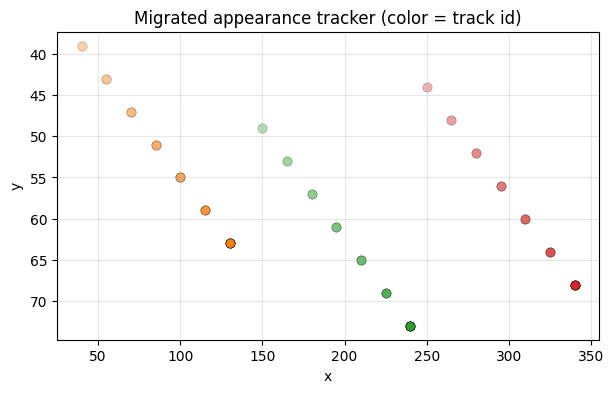

fig, ax = plt.subplots()
plot_tracks(app_results,
            "Migrated appearance tracker (color = track id)", ax)
plt.show()

One coherent trajectory per color: the cosine cost re-associates every shuffled detection to the right identity, exactly as the 1.x tracker did — but the 2.0 construction is the springboard for everything below.

Why one cue isn't enough

The migrated tracker matches on appearance alone. A pure motion tracker (IoU between boxes, à la SORT) is the classic alternative — but it breaks under fast camera motion: when the pan between frames exceeds the box size, consecutive boxes don't overlap, IoU is zero everywhere, and every object spawns a fresh ID each frame. We size a pan past the box width to force exactly that.

box_w = (seed["boxes"][:, 2] - seed["boxes"][:, 0]).median().item()
clip_fast = make_clip(seed, pan=(1.5 * box_w, 0.0))  # pan > box width

iou_tracker = make_tracker(
    Pipe(cost=BoxIoU("bbox"), assoc=Associate(Jonker(threshold=0.7))))

n_obj = seed["boxes"].shape[0]
iou_ids = distinct_ids(run_clip(iou_tracker, clip_fast))
app_ids = distinct_ids(run_clip(appearance_tracker, clip_fast))
print(f"objects in scene:                 {n_obj}")
print(f"IoU-only ids under a fast pan:    {len(iou_ids)}  (id explosion)")
print(f"appearance ids under a fast pan:  {len(app_ids)}  (stable)")

Output

objects in scene:                 3
IoU-only ids under a fast pan:    18  (id explosion)
appearance ids under a fast pan:  3  (stable)

Appearance survives the pan; IoU collapses. But appearance alone is fragile the other way — two similar-looking objects that cross paths can swap IDs, where IoU would have held them apart. Real trackers want both cues. In 1.x, combining them meant a bespoke cost subclass or an awkward multi-stage hack. 2.0 makes it a one-liner — two ways.

New in 2.0 #1 — parallel cost fusion

Parallel([...], merge=...) runs several cost producers on the same snapshot and merges their matrices. WeightedSum lets you dial the appearance/motion balance. The whole fused cost is still a single CostProducer, so it drops straight into a Pipe.

fused_tracker = make_tracker(
    Pipe(
        cost=Parallel(
            children=[Cosine("reid"), BoxIoU("bbox")],
            merge=WeightedSum([1.0, 0.5]),   # appearance + 0.5 * motion
        ),
        assoc=Associate(Jonker(threshold=1.0)),
    )
)
fused_results = run_clip(fused_tracker, clip_fast)
print(f"parallel fusion (appearance + IoU) -> ids: "
      f"{distinct_ids(fused_results)}")
print("Stable under the same fast pan that broke IoU-only — "
      "appearance carries it, IoU sharpens it when boxes do overlap.")

Output

parallel fusion (appearance + IoU) -> ids: [1, 2, 3]
Stable under the same fast pan that broke IoU-only — appearance carries it, IoU sharpens it when boxes do overlap.

New in 2.0 #2 — cascaded matching (ByteTrack-style)

Sequential([stage1, stage2, ...]) over match-producing stages chains residuals: stage 1 matches what it can, and only the leftover tracklets and detections flow into stage 2. A strict appearance pass followed by an IoU fallback is the canonical two-stage cascade — and it's just a list.

cascaded_tracker = make_tracker(
    Sequential([
        # Stage 1: confident appearance matches only.
        Pipe(cost=Cosine("reid"),
             assoc=Associate(Jonker(threshold=0.2))),
        # Stage 2: IoU fallback on whoever is left.
        Pipe(cost=BoxIoU("bbox"),
             assoc=Associate(Jonker(threshold=0.7))),
    ])
)
cascaded_results = run_clip(cascaded_tracker, clip)
print(f"cascaded (appearance -> IoU) -> ids: "
      f"{distinct_ids(cascaded_results)}")

Output

cascaded (appearance -> IoU) -> ids: [1, 2, 3]

New in 2.0 #3 — lifecycle & gating

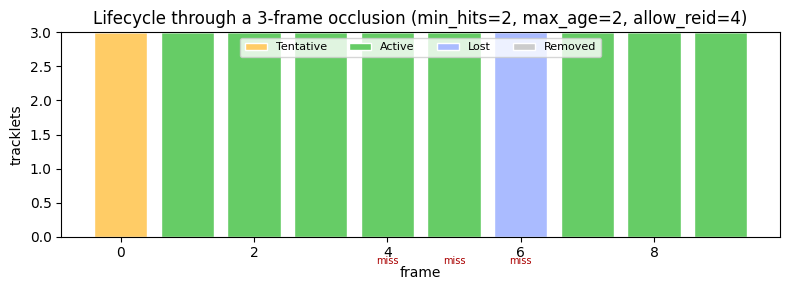

The 1.x embedding tracker had no notion of track birth or death — every detection was a track, immediately. 2.0 adds a first-class lifecycle: StandardLifecycle runs the Tentative → Active → Lost → Removed state machine, and a visibility policy (ConfirmedOnly) hides flickering unconfirmed tracks from the caller. Below, three frames of detections go missing (an occlusion); a confirmed track goes Lost, then re-acquires its original ID when it reappears — within the allow_reid window.

clip_gap = make_clip(seed, n_frames=10, pan=(4.0, 1.0), drop={4, 5, 6})
lifecycle_tracker = make_tracker(
    Gated(gate=ClassGate("category"),
          then=Pipe(cost=Cosine("reid"),
                    assoc=Associate(Jonker(threshold=0.3)))),
    lifecycle=StandardLifecycle(min_hits=2, max_age=2, allow_reid=4),
    visibility=ConfirmedOnly(),
)
ms = ut.MultiStream(lifecycle_tracker)
names = ["Tentative", "Active", "Lost", "Removed"]
rows = []
for k in range(len(clip_gap)):
    res = ms.step(0, clip_gap[k], FrameContext.make(k, fps=15.0))
    snap = res.snapshot
    counts = [int((snap.status == s).sum()) for s in range(4)]
    rows.append(counts)
    present = clip_gap[k].batch_size[0] > 0
    tally = ", ".join(f"{names[s]}={counts[s]}" for s in range(4)
                      if counts[s])
    print(f"frame {k:2d}  {'det ' if present else 'MISS'}  {tally}")

Output

frame  0  det   Tentative=3
frame  1  det   Active=3
frame  2  det   Active=3
frame  3  det   Active=3
frame  4  MISS  Active=3
frame  5  MISS  Active=3
frame  6  MISS  Lost=3
frame  7  det   Active=3
frame  8  det   Active=3
frame  9  det   Active=3

rows_t = torch.tensor(rows)
fig, ax = plt.subplots(figsize=(8, 3))
colors = ["#ffcc66", "#66cc66", "#aabbff", "#cccccc"]
bottom = torch.zeros(len(rows))
for s in range(4):
    ax.bar(range(len(rows)), rows_t[:, s].numpy(), bottom=bottom.numpy(),
           color=colors[s], label=names[s], edgecolor="white")
    bottom = bottom + rows_t[:, s]
for k in range(len(clip_gap)):
    if clip_gap[k].batch_size[0] == 0:
        ax.text(k, -0.4, "miss", ha="center", color="#aa0000", fontsize=7)
ax.set_xlabel("frame"); ax.set_ylabel("tracklets")
ax.set_title("Lifecycle through a 3-frame occlusion "
             "(min_hits=2, max_age=2, allow_reid=4)")
ax.legend(fontsize=8, ncol=4, loc="upper center")
plt.tight_layout(); plt.show()

New in 2.0 #4 — differentiable matching

The headline capability: with a soft assignment, the matching is differentiable, so a tracking loss can backpropagate into the embeddings (and through them, the detector backbone). 1.x had no path to this — the Hungarian solve is a hard, non-differentiable argmax.

SoftAssignment solves an entropy-regularised optimal-transport problem (Sinkhorn) and exposes the transport plan on MatchOutcome.soft_plan. We build a single soft matching stage, run it, and backprop a "match the right pairs" loss to the detection embeddings.

def tracklets_from_reid(reid):
    n = reid.shape[0]
    return Tracklets(
        id=torch.arange(n, dtype=torch.int64),
        status=torch.full((n,), int(TrackletStatus.Active),
                          dtype=torch.int8),
        hits=torch.ones(n, dtype=torch.int32),
        time_since_update=torch.zeros(n, dtype=torch.int32),
        age=torch.ones(n, dtype=torch.int32),
        frame_started=torch.zeros(n, dtype=torch.int32),
        frame_last_seen=torch.zeros(n, dtype=torch.int32),
        reid=reid, batch_size=[n])

cs = tracklets_from_reid(seed["reid"].clone())
torch.manual_seed(7)
det_emb = (seed["reid"] + 0.05 * torch.randn_like(seed["reid"]))
det_emb = det_emb.requires_grad_(True)         # the learnable input
ds = Detections(index=torch.arange(det_emb.shape[0], dtype=torch.int64),
                reid=det_emb, batch_size=[det_emb.shape[0]])

soft_stage = Pipe(cost=Cosine("reid"),
                  assoc=Associate(SoftAssignment(epsilon=0.1)))
match = soft_stage(cs, ds, FrameContext.make(0))
plan = match.soft_plan                          # (N, M), differentiable

loss = -plan.diagonal().sum()                   # reward correct matches
loss.backward()
print(f"soft transport plan shape: {tuple(plan.shape)}")
print(f"plan total mass: {plan.detach().sum().item():.2f}  "
      f"(uniform OT marginals; mass concentrates on the diagonal)")
print(f"gradient norm on detection embeddings: "
      f"{det_emb.grad.norm().item():.4f}  (non-zero -> it learns)")

Output

soft transport plan shape: (3, 3)
plan total mass: 1.00  (uniform OT marginals; mass concentrates on the diagonal)
gradient norm on detection embeddings: 0.0146  (non-zero -> it learns)

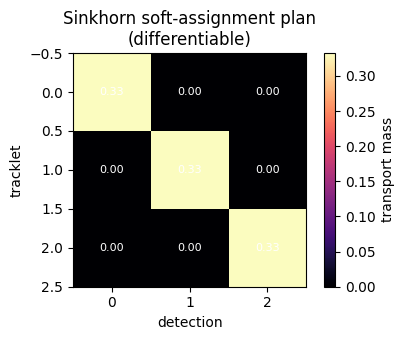

fig, ax = plt.subplots(figsize=(4.5, 3.5))
im = ax.imshow(plan.detach().numpy(), cmap="magma", vmin=0)
ax.set_title("Sinkhorn soft-assignment plan\n(differentiable)")
ax.set_xlabel("detection"); ax.set_ylabel("tracklet")
for i in range(plan.shape[0]):
    for j in range(plan.shape[1]):
        ax.text(j, i, f"{plan[i, j]:.2f}", ha="center", va="center",
                color="white", fontsize=8)
plt.colorbar(im, ax=ax, label="transport mass")
plt.tight_layout(); plt.show()

The plan is sharp on the diagonal and the gradient is non-zero, so the embeddings receive a learning signal through the matcher. To get the same behavior inside a full tracker, build it with a single flag — ut.Tracker(..., differentiable=True) — and unitrack swaps every hard node (Associate, Replace, StandardLifecycle, …) for its soft companion automatically. Combined with ClipTracker, that is enough to train end-to-end across a clip.

Where to go next

Migration guide — the full 1.x → 2.0 symbol map and a line-by-line port of this tracker.
Notebooks 1–6 — the library from the ground up: data model, cost & gate zoos, the pipeline tree, states & lifecycle.
unitrack.tracker.BatchTracker — vmap-batched multi-stream inference. ClipTracker — clip-based methods (MinVIS, DVIS++).
Recipes (docs/recipes/) — SORT and the overlap-IoU tracker as compact, self-contained builders.

6. End-to-end: K=2 cascaded and parallel fusion
